China Best quality Pp Woven Bag Machine - Soybean bag and corn bag with high cold and hot sewing machine - VYT factory and manufacturers | VYT Detail:

Description

The machine is suitable for bags with variety of materials, like PP (Polypropylene) /PE (Polyethylene) /HDPE woven bag, plastic bag, kraft paper sack, laminated bag, un-laminated bag, paper-plastic compound bag, etc.
These bags are used in many industries, such as chemical woven bags, cement bags, putty powder woven bags, sand bags, fertilizer bags, flour bags, rice bags, salt bags, sugar bags, grain bags, seeds bags, feed bags, shipping bags, etc.
Jumbo bag (big bag) is also applicable to this unit.

1

Specification

Folding width (mm) 20-30
Max diameter of coil 1200mm
Production capacity(pc/min) 45-55
Number of operators 1person
Cutting width (mm) 400-800
Cutting length(mm) 500-1300
Voltage 380V, 3Ph, 50Hz
 Power 14.5kw
Stitch length 8-12 mm



Air consumption 0.4-0.5 Cubic / hour
Dimension(LxWxH) 6000*5000*1500mm
Wooden case 4400*2100*1360 mm

3320*1440*1290 mm



Feature

(1) Soybean bag and corn bag with high cold and hot sewing machine automatically complete the functions of blank woven bag coil, such as fixed length cutting, sewing, printing, bagging, etc.
(2)Accurate control system with touch screen setting, PLC control and servo motor drive
(3)After cold-cutting, the bag does not adhere and opens easily.
(4) Soybean bag and corn bag with high cold and hot sewing machine use electric winding, pneumatic deviation correction device, easy to operate, labor-saving, automatic counting, bags can be stacked and delivered.
(5)Precision seam printing, mesh roller ink transfer, pneumatic separation, clear pattern, accurate color registration
(6)Special specifications can be customized according to customer requirements





Package

Soybean bag and corn bag with high cold and hot sewing machine is packaged in wooden box and shipped by sea.

6

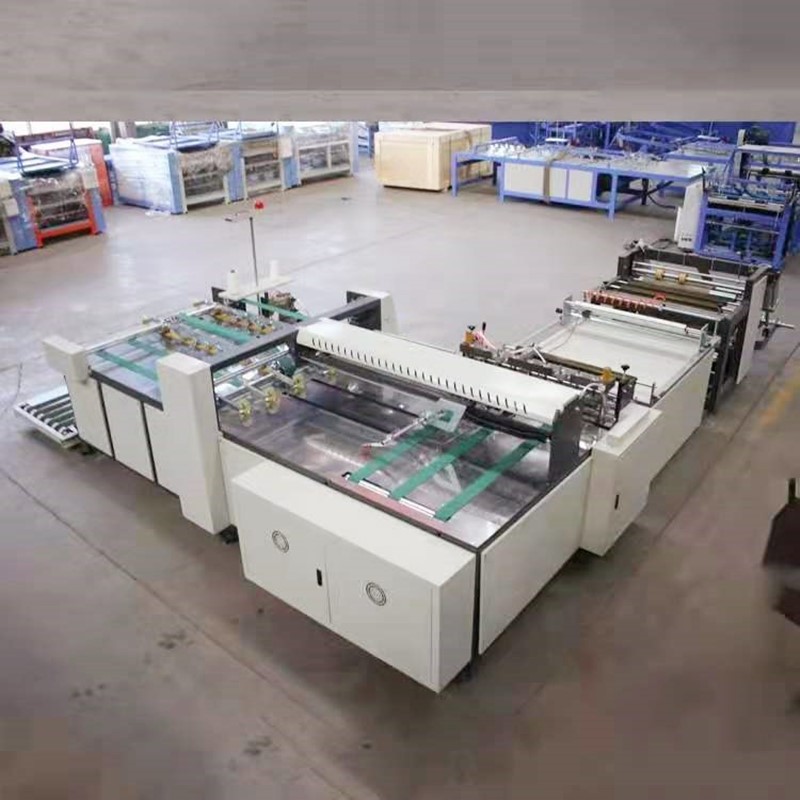

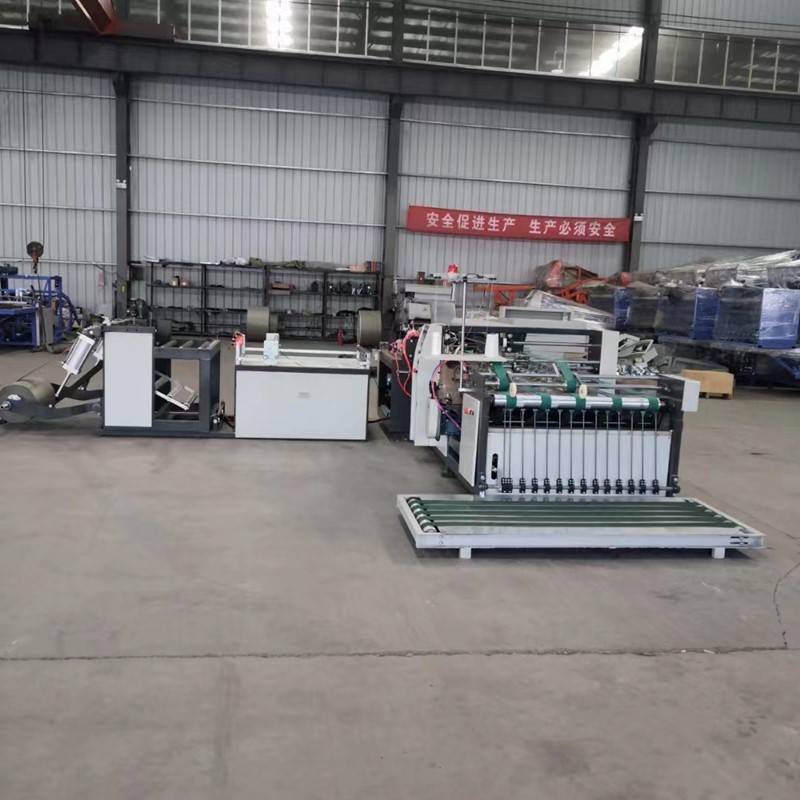

Product detail pictures:

China Best quality Pp Woven Bag Machine - Soybean bag and corn bag with high cold and hot sewing machine - VYT factory and manufacturers | VYT detail pictures

China Best quality Pp Woven Bag Machine - Soybean bag and corn bag with high cold and hot sewing machine - VYT factory and manufacturers | VYT detail pictures

China Best quality Pp Woven Bag Machine - Soybean bag and corn bag with high cold and hot sewing machine - VYT factory and manufacturers | VYT detail pictures
