Description

We have been engaged in the manufacture, supply, and export of FIBC Cutting with Spout Cutting Machine. The offered fabric cutting machine is a heavy and robust machine framework, used for the accurate cutting of materials. Our offered cutting machine is microprocessor-based system, which is provided with a multi-feature control panel. The offered cutting machine saves space and manpower usage.

3

Model

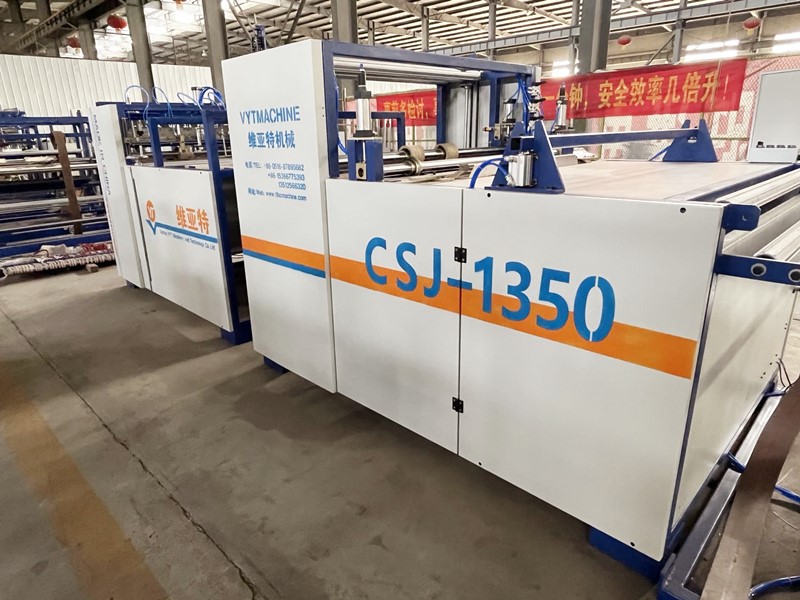

Our CSJ- 1400 ,CSJ- 2200 and CSJ-2400 are reliable and efficient machines designed to produce FIBC (Jumbo Bags) panels of preset cut length with possibilities of profile cuts customized to client requirements.

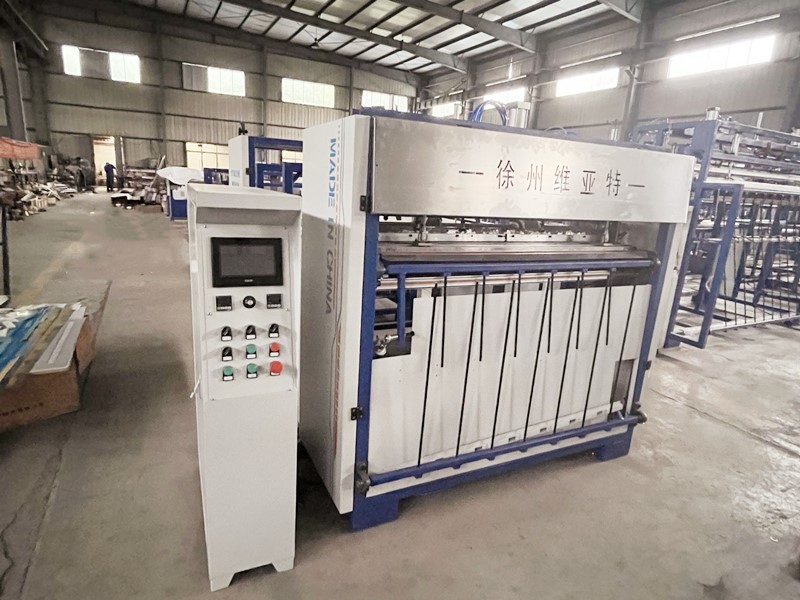

The computer control system of the automatic cloth cutting machine for jumbo bags adopts the world advanced AC servo control technology to drive the spindle motor, which has the characteristics of large torque, high efficiency, high speed stability and low noise. The design of operation panel is diversified, which can meet the matching requirements of different customers. The system adopts Chinese structural design, which is convenient for installation and maintenance

1

5

Features

The specially designed machine integrates the various main functions in jumbo bag cutting—punching like:Auto jumbo—fabric roll feeding,Edge process control(EPC),Length—counting,Punching unit for “O” hole,Punching unit for “+” hole,Circle describing,Linear—knife cutting,Jumbo—fabric feeding.
1.Max fabric cutting width from 1350mm to 2400mm
2.Marking with mark pen or ink needle for flat or tubular fabric available as optional.
3. PLC control system.Color man—machine interface,which make date—setting,display,recording more clear and accurate,easier operation.
4.Hydraulic automatic jumbo—fabric roll feeding&EPC unit,stable,simple and easy in operation.
5.Equipped import servo control system for precise and fast cutting.
6.Ultrasonic hemming(ultrasonic folding).
7.Hot and cold cutting fabric both are available .

画圆



收布





Main Technical Parameters

Model

CSJ-2200

Cutting Width

Max.2200mm

Cutting Length

500—10000mm

“X”Hole

300-500mm

“O”Hole

300-550mm

Cutting precision

±5mm

Production Speed

10-20Pcs/min(Fabric cutting)

10-15Pcs/min(“X”Hole or “O”Hole)

Total installed capacity

10KW

Voltage

380V 3phase 50Hz

Compressed air

6Kg/cm²

Weight of machine

1500kg

Overall dimension



8000*2500*1800mm

(Length*Width*High)





With the improvement of global environmental protection awareness, we have specially added a smoke removal device for the ton bag cutting machine, which can achieve both efficient cutting and environmental protection production.

7
8

Application

Applied to the different jumbo bag fabric cutting like, Jumbo bag lay-flat/double flat fabric, Jumbo bag single-layer fabric, Jumbo Bag bottom cover, top cover, top mouth fabric.

4
Jumbo Bag  Panel Spout Cutting Machine CSJ-22009
Jumbo Bag  Panel Spout Cutting Machine CSJ-220010
Jumbo Bag  Panel Spout Cutting Machine CSJ-220011

Notes

With this well designed, compact machine, you can put polypropylene fabric pieces and a desired size of spout hole. Length and hole cutting devices may also be operated separately.

Before starting the process, an operator should install the right size of hole cutting unit. The exact position of the hole should be adjusted. The centering of the holing unit is done by edge control unit. After setting the desired cut length, the operation runs automatically till it reaches the programmed quantity.

You may need to adjust the timing, duration of the cutting process and the heat temperature according to the thickness of the fabric. The stacking is done manually. An automatic stacking unit is available optionally.
